Линия по производству удобрений из кроличьего помета делится на линию по производству порошка из кроличьего помета и линию по производству гранул из кроличьего помета. Кроличьее помете содержит 1,58% азота, 1,47% фосфора, 0,41% калия, а также различные микроэлементы и витамины, которые могут непосредственно усваиваться растениями для улучшения качества их роста.

Процессная схема линии по производству органических удобрений из кроличьего помета компактна, научно обоснована, технологически продвинута, энергосберегающая и снижающая потребление, без трех видов выбросов, стабильна в эксплуатации, надежна, проста в обслуживании и широко адаптируема к сырью. Адаптация к различным соотношениям органических сложных удобрений, биоорганических удобрений, городского ила и органических удобрений из бытовых отходов заполнила пробел в Китае и находится на ведущем уровне в стране. Это проект по продвижению практических технологий защиты окружающей среды в Китае. Навоз крупного рогатого скота и птицы богат органическими веществами, которые могут обеспечить питательные вещества, необходимые для роста сельскохозяйственных культур, и улучшить плодородие почвы. Существуют различные типы органических удобрений с широким спектром сырья и разнообразными видами удобрений.

Процесс применения линии по производству органических удобрений для переработки кроличьего помета:

Добавление органических твердых отходов с содержанием влаги менее 60% (таких как солома, опилки, рисовая отруби, соевый шрот и др.) к свежему навозу в качестве вспомогательных материалов, смешанных с микробными ферментационными агентами, для регулирования влажности, аэрации и соотношения углерода и азота.

Используйте склад ингредиентов для смешивания, измельчения и смешивания компостируемых материалов с неорганическими удобрениями, такими как N, P, K, и другими добавками в определенной пропорции с помощью дробилки и смесителя.

Используйте органический гранулятор с вращающимся барабаном для гранулирования материалов. Добавляя определенное количество воды или пара, органическое удобрение из коровьего навоза проходит полную химическую реакцию после смачивания в цилиндре. При определенных условиях жидкой фазы вращательное движение цилиндра создает сжимающую силу между частицами материала, заставляя их собираться в гранулы.

Используйте сушилку для органических удобрений, чтобы дополнительно удалить влагу из просеянных гранул и довести содержание влаги до стандартных требований для органических удобрений.

Используйте охлаждающее устройство для охлаждения гранулированного материала.

Охлажденный гранулированный материал транспортируется на барабанный грохот для просеивания.

Квалифицированные гранулированные органические удобрения упаковываются с использованием автоматического упаковочного оборудования.

Использование оборудования для производства органических удобрений позволяет решать вопросы соблюдения экологических норм при строительстве и реконструкции животноводческих и птицеводческих ферм, а также на территориях с плотным содержанием скота и птицы свободного выгула. Оно также позволяет претендовать на соответствующую финансовую поддержку, такую как программы охраны окружающей среды и чистого производства, а также субсидии по кредитам на решение экологических проблем. Использование отходов животноводства для производства органических удобрений позволяет эффективно решить проблему недостатка органических веществ в овощеводстве.

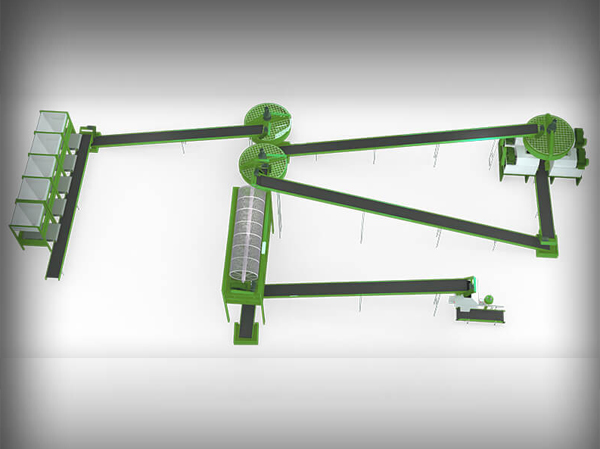

Конфигурация линии производства удобрения из кроличьего навоза – часть ферментации и дробления сырья

NAME	Specifications	Quantity	Remark
Trough tipping machine	ZCFD-3000	1	Includes a shift car (tank changing car), shift motor, electrical control cabinet, remote control handle, and cable drum for customer selection (The track needs to be purchased by the customer) According to customer requirements, our company has flipping equipment with a width of 2-20 meters and a flipping depth of 0.8-3 meters.
Forklift feeder	ZCW-2030	1	Includes uniform discharge device, anti smashing net device, mixing anti blocking device, and vibration anti blocking device. The capacity of the silo is about 5m3, greatly reducing the workload of the forklift operator, and the forklift driver can also operate the stacker. The function of this device is to uniformly transport raw materials to the crusher.
Drum screen	ZGS-1240	1	The screen mesh is made of stainless steel material to prevent corrosion. According to customer requirements, a striking anti sticking net device can be added.
Vertical composite mill	ZLFF-600	1	The crusher adopts a chain blade composite structure, which can crush materials with a moisture content of less than 40% to a granulation state. The chain is made of high manganese alloy, and the blades are made of spring steel material, which has the advantage of durability and wear resistance. The rotor is dynamically balanced and can operate stably without the need for a foundation.
Three warehouse dynamic batching	ZZP-1515	4	The size of this silo is customized according to the customer’s ratio. The part in contact with the material can be made of 304 stainless steel material. The computer quantitative weighing system adopts imported sensors and instruments, with high measurement accuracy, ingredient accuracy of ≤± 0.5%, packaging accuracy of ≤± 0.2%, and reliable operation.

Rabbit manure feed production line configuration — granulation part

NAME	Specifications	Quantity	Remark
Single-shaft mixer	ZSJ-0830	1	The mixing blade adopts a double spiral structure, which ensures uniform mixing and high efficiency. The mixing blades are made of high-strength and wear-resistant materials, which have a longer service life. The minimum gap between the rotor and the shell can be adjusted to near zero, effectively reducing the amount of material residue. Mixing capacity: 5-8t/h Body thickness: 6mm Dimensions: 3800 * 1320 * 770mm Reducer model: JZQ350-31.5 Mixing speed: 34r/min
Stir tooth granulator	ZZGZ-600	1	The interior of the barrel is lined with rubber sheets, which automatically remove scars. Anti corrosion insulation. The support wheel frame and transmission gear ring roller belt of the granulator are all made of cast steel material. Barrel thickness: 14mm, barrel inner diameter: 1800mm, barrel length: 6000mm. Material Q345. Adopting a one-time forming spiral tube. Production capacity: 7-9t/h Rotation speed: 11.5r/min
Rotary dryer	ZHG-1010	1	The dryer cylinder is a 14mm thick integrated spiral tube, which has the advantages of high concentricity, strong rigidity, and smooth operation. The thickness of the lifting plate is 8mm. The gear ring, rolling belt roller, and bracket are all cast steel parts. The induced draft fan is self-made by the company and has undergone static and dynamic balance calibration, resulting in stable and high-intensity operation. Adopting a co current drying method, the material and heat source airflow enter the drying equipment from the same side, resulting in a low outlet temperature and high thermal efficiency of the dryer. Choose reasonable operating parameters to balance the «coal, material, and air», thereby greatly improving the thermal efficiency of the dryer and reducing drying energy consumption by more than 30-50%.
Rotary cooling machine	ZLQ-0880	1	The cooling machine cylinder is a 14mm thick integrated spiral tube, which has the advantages of high concentricity, strong rigidity, and smooth operation. The thickness of the lifting plate is 6mm. The gear ring, rolling belt roller, and bracket are all cast steel parts. The induced draft fan is self-made by the company and has undergone static and dynamic balance calibration, resulting in stable and high-intensity operation. Choose reasonable operating parameters to balance the «material and air», thereby greatly improving the cooling efficiency of the cooling machine and reducing cooling energy consumption by more than 20-50%.
Drum screen	ZGS-1240	1	The screen mesh is made of stainless steel material to prevent corrosion. According to customer requirements, a striking anti sticking net device can be added. The function of this screening machine is to screen the crushed raw materials, the finished products enter the granulation process, and the waste products are returned for re crushing. The finished product is also a powdered organic fertilizer

Rabbit fertilizer feed production line configuration — supporting equipment

NAME	Specifications	Quantity	Remark
There is a bucket pellet packaging machine	ZKB	1	The parts in contact with the material are made of 304 stainless steel material. Specially designed feeding and bucket metering are carried out simultaneously with bagging and unloading. Save one-third of homework time, fast packaging speed, and high packaging accuracy. Imported sensors and pneumatic actuators are used, which are reliable in operation and easy to maintain. Measurement accuracy is plus or minus two thousandths. Wide quantitative range, high accuracy, combined with a conveyor sewing machine that can be raised and lowered on the table, making it versatile and efficient.
Finished product warehouse	ZLC-1200	1	The finished organic fertilizer warehouse is widely used in various fertilizer production lines to undertake the transfer equipment that is quickly transported to the belt conveyor and transported by the belt conveyor to the next deep processing link. This finished product warehouse, equipment material quality, durable.
Chain return mill	ZLTF-500	1	The outer wall of the crusher is made of 8mm thick manganese steel plate. The crusher chain adopts a high-strength alloy chain. The crushed material is uniform, not easy to stick to the wall, and easy to clean. The inner wall can be made of rubber or stainless steel (depending on customer needs) to achieve a smooth surface and easy cleaning. Quick opening maintenance doors are installed on both sides of the body, and the body and transmission device are mounted on a steel base. A shock absorber is installed at the bottom of the base and connected to the foundation.
Cyclone dust collector	ZXC-900	2	The cyclone dust collector has a simple structure, is easy to manufacture, install, and maintain, and has low equipment investment and operating costs. The cyclone dust collector is composed of an intake pipe, an exhaust pipe, a cylindrical body, a conical body, and an ash hopper. Each component of the cyclone dust collector has a certain size ratio, and the diameter of the dust collector, inlet size, and exhaust pipe diameter are all accurately calculated by engineers. Ensure the best dust removal effect is achieved.
Induced draft fan	ZYF-6C	15	The induced draft fan is self-made by the company and has undergone static and dynamic balance calibration, resulting in stable and high-intensity operation. The induced draft fan and connecting pipeline are matched with the dryer. The impeller consists of 10 aft inclined blade types, a curved front plate, and a flat rear plate. Made of copper plate or cast aluminum alloy, and calibrated for dynamic and static balance, it has good air performance, high efficiency, and smooth operation. The air inlet is made as a whole and installed on the side of the fan. The cross-section parallel to the axial direction is curved, which allows gas to enter the impeller smoothly with minimal loss.
